DIG PC DRIP MANIFOLD BROWN 5.5 GPH 6 OUT

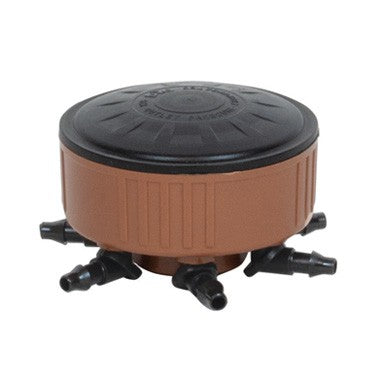

6-Outlet Drip Irrigation Manifold
DIG’s Six-Outlet PC Drip Emitter Manifold is a high-flow emission device used to retrofit an existing 1/2″ sprinkler riser into a six-outlet drip irrigation system without altering or increasing the flow of the sprinkler system zone. The manifold with 1/2″ female pipe thread is a pressure compensating head operating at a pressure range of 15-50 PSI with an even flow rate of 6 GPH per each outlet. It allows installation flexibility when incorporated into a new system or as a part of a sprinkler system zone. The manifold has six rotating barbed elbows outlets that can be connected to 1/4″ micro tubing to deliver water under the plant canopy, using stakes to support the micro tubing in place. It can also incorporate 1/4″ drip line, 1/4″ soaker hose or drip emitters to a maximum flow of 6 GPH to achieve good root zone coverage of individual plants or groups of plants.

Features

• Replacing the sprinkler riser with the six-outlet manifold can lead to water savings of 50% to 70%
• Can be used to water roses, shrubs, groundcover and trees
• Applies water directly to the plant root zone area, leading to less surface evaporation from leaves and soil
• Eliminates wet walls and discoloration and staining of fences and windows
• Designed for new and existing landscapes, including oddly shaped areas where a sprinkler head cannot provide good coverage
• No special tools or glue are needed
• DIG’s drip irrigation products may be exempt from residential and commercial watering restrictions (check local codes)
• Barbed elbow outlets allow installation flexibility
• Pressure compensating feature allows for equal flow rates from each outlet
• Install above grade, or place below grade in a 6″ emitter box
• Use with any 1/4″ micro tubing
